Your are here: Home >> Products >>Alcohol Deposition Tank
Alcohol deposition tank is developed from traditional technology, mainly used for freeze Chinese medicine liquid getting fried and condensed or to operate warm alcohol sediment, also can be used to operate water sediment after Chinese herbs being extracted.
Directory
- Structure of Alcohol Deposition TankUsages of Alcohol Deposition TankCharacteristics of Alcohol Deposition TankTechnical Parameters of Alcohol Deposition TankAlcohol Deposition Tank Finished Picture
- Usages of Alcohol Deposition Tank
- Characteristics of Alcohol Deposition Tank
- Technical Parameters of Alcohol Deposition Tank
- Alcohol Deposition Tank Finished Picture

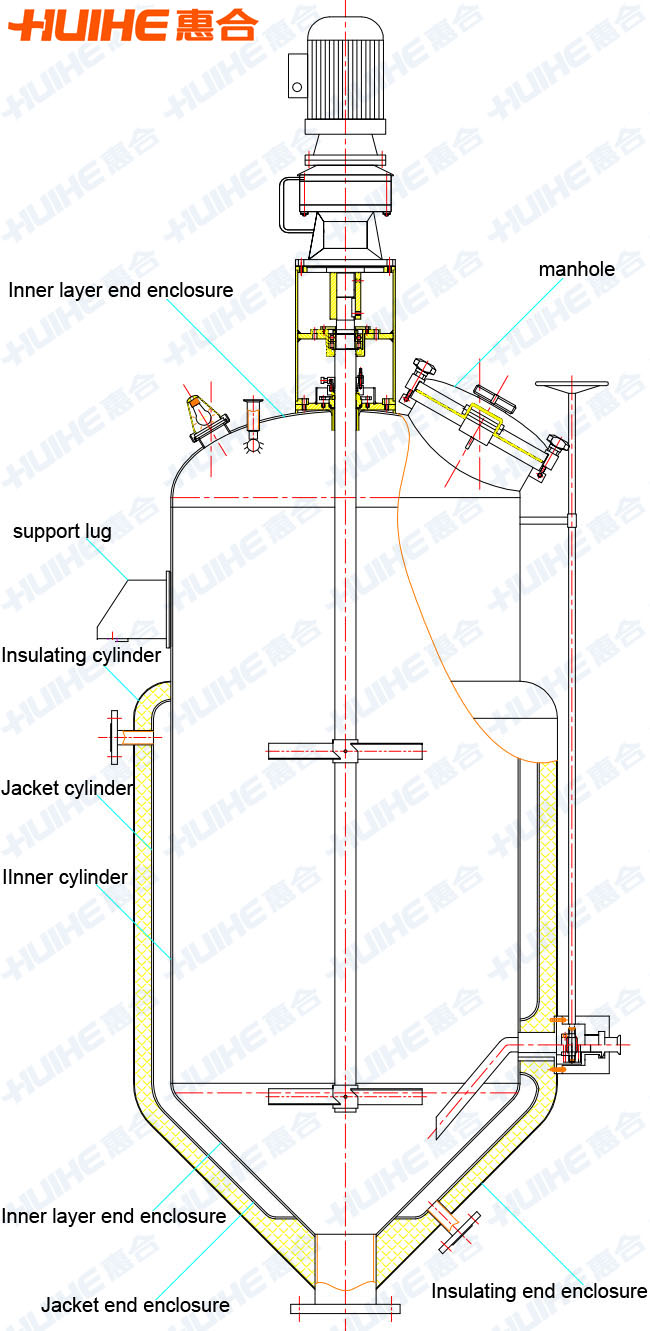

Structure of Alcohol Deposition TankUsages of Alcohol Deposition TankCharacteristics of Alcohol Deposition TankTechnical Parameters of Alcohol Deposition TankAlcohol Deposition Tank Finished Picture
Usages of Alcohol Deposition Tank
This alcohol deposition recovery equippment is suitable for alcohol sediment in Chinese medicine, oral liquid, foodstuff, health-protective products and chemical industry.
Characteristics of Alcohol Deposition Tank
1, Reduce the workers labor intensity, improve the working conditions;
2, Improve the work efficiency;
3, It can solve the problem of automatic cleaning, full compliance with national GMP standard, improve the product quality.
Technical Parameters of Alcohol Deposition Tank
|
Model |
JC-330 |
JC-500 |
JC-1000 |
JC-1500 |
JC-2000 |
JC-3000 |
JC-6000 | ||
|
Volume （m³） |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
3.0 |
6.0 | ||
|
Heating transfer area（㎡） |
1.8 |
3.0 |
4.5 |
6.5 |
7.5 |
8.5 |
13 | ||
|
Working temperature （℃） |
Normal temperature ~-15 | ||||||||
|
Jacket designed pressure （Mpa） |
0.09-0.4 | ||||||||
|
Pressure in tank（Mpa） |
Normal pressure | ||||||||
|
Stirring power（KW） |
0.75 |
0.75 |
1.5 |
2.2 |
2.2 |
3.0 |
5.0 | ||
|
Stirring speed（r/min） |
72 |
72 |
72 |
72 |
72 |
72 |
125 | ||
|
Body size（mm） |
Inter diameter |
600 |
800 |
1000 |
1200 |
|
|
| |
|
Outer diameter |
800 |
1000 |
1200 |
1400 |
|
|
| ||
|
Height |
900 |
1350 |
1700 |
|
|
|
| ||

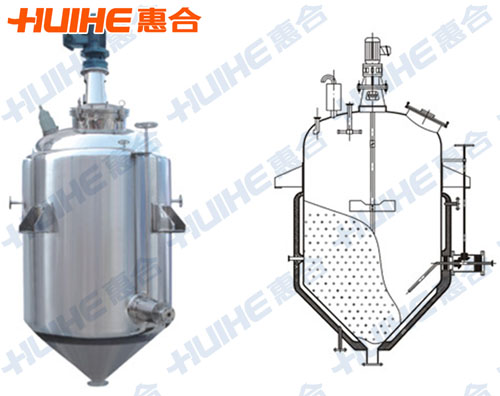

Alcohol Deposition Tank Finished Picture
