Steam autoclave(sterilization equipment) is mainly through the boiler steam directly heating sterilization. Sterilization of food is mainly in order to extend the shelf life of food, and as far as possible keep food important nutrients and flavor.
Directory
- Classification of Autoclave
- Usage of Steam Autoclave(Sterilization Equipment)
- Characteristics of Steam Autoclave(Sterilization Equipment)
- Technical parameters of Autoclave
- Steam Autoclave(Sterilization Equipment) Finished Picture
Classification of Autoclave
1. According to material, there are SUS304 and carbon steel（Q235-B）.
2. According to heating type, it can be divided into steam heating and electric heating.
3. According to control type, it can be divided into manual control, semiautomatic control and automatic control.
Usage of Steam Autoclave(Sterilization Equipment)
The steam autoclave can be used for food sterilization in glass bottles, plastic bottles, cooking bags, cans such as dairy products, beverage, canned food, rice pudding, ham, meat etc.
Characteristics of Steam Autoclave(Sterilization Equipment)
Steam autoclave(Sterilization Equipment) is a certain pressure steam boiler for heat source, with fast heating, high thermal efficiency, uniform heating, the heating temperature easy to control, etc.
Technical parameters of Autoclave
|
Volume |
600L |
1100L |
1900L |
2200L |
3100L |
4000L |
|
Body diameter （mm） |
800 |
900 |
1000 |
1100 |
1100 |
1200 |
|
Body length （mm） |
1000 |
1500 |
2000 |
2000 |
3000 |
3000 |
|
Material |
SUS304/ Q235-B | |||||
|
Designed pressure |
0.35MPa | |||||
|
Working pressure |
＜0.3MPa | |||||
|
Designed temperature |
140.7℃ | |||||
|
Working temperature |
＜135℃ | |||||
Notes:
1. The parameters of autoclave in the chart are standard configurations. Any specific requirements, please let us know.
2. The process parameters that need provided when choosing the retorts: the nature of material, sterilization process, specific requirements, etc.
3. Accessories: storage gas tank, air compressor, water tank, boiler.

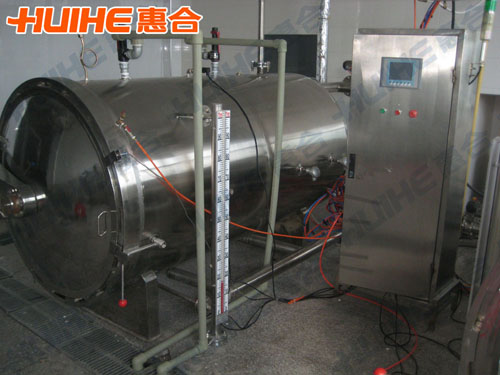

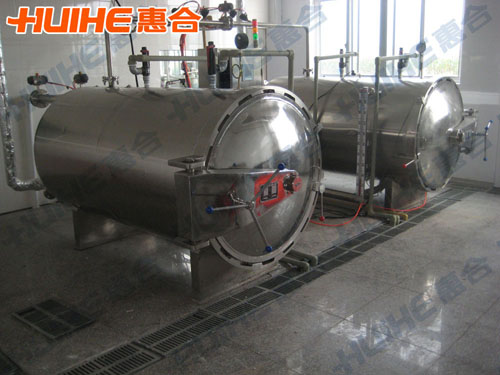

Steam Autoclave(Sterilization Equipment) Finished Picture
