Your are here: Home >> Products >>Tilting Jacketed Kettle
Tilting jacketed kettle made of acid and heat-resisting stainless steel 304, equipped with a pressure gauge and relief valve, electric cabinet. It is widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
Directory
- Live Demonstration of Jacketed Kettle
- Structure of Tilting Jacketed Kettle
- Usages of Tilting Jacketed Kettle
- Characteristics of Tilting Jacketed Kettle
- Technical Parameters of Tilting Jacketed Kettle
- Tilting Jacketed Kettle Finished Picture
Live Demonstration of Jacketed Kettle

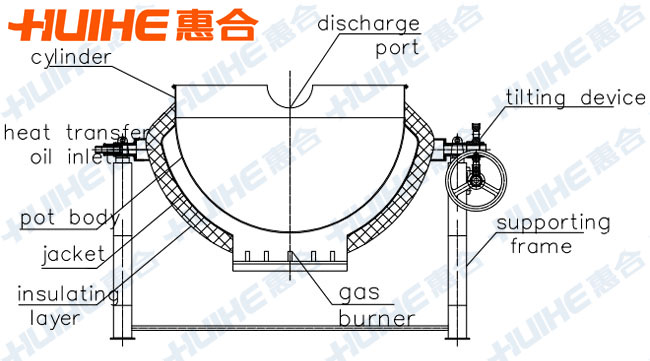

Structure of Tilting Jacketed Kettle
Usages of Tilting Jacketed Kettle
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Characteristics of Tilting Jacketed Kettle
The jacketed kettle considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Technical Parameters of Tilting Jacketed Kettle
|
Model |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 | |
|
Caliber（mm） |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 | |
|
Depth of Pot（mm） |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 | |
|
Heating area（m2） |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 | |
|
Boiling time（min） |
5 |
8 |
11 |
14 |
18 |
22 |
25 |
34 |
40 | |
|
Interface size |
Steam pipe |
3/4” |
1” |
2” | ||||||
|
Condensate pipe |
3/4” |
1” | ||||||||
|
Working pressure |
≤0.09Mpa（can be adapted according to customers’ requirement） | |||||||||
|
Stirring speed |
36 r/min（can be adapted according to customers’ requirement） | |||||||||
|
Stirring power（Kw） |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 | |
Notes:
1. The stirring power in the technical parameters of jacketed kettle chart is standard configuration. Any specific requirements, please let us know.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.
3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.

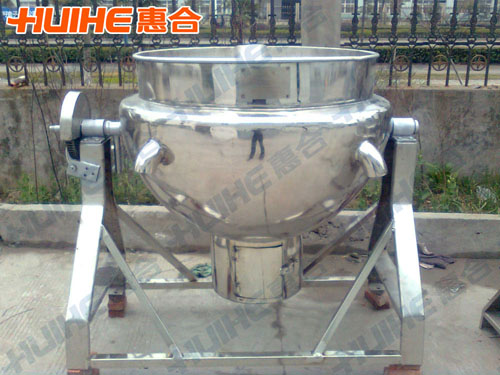

Tilting Jacketed Kettle Finished Picture
